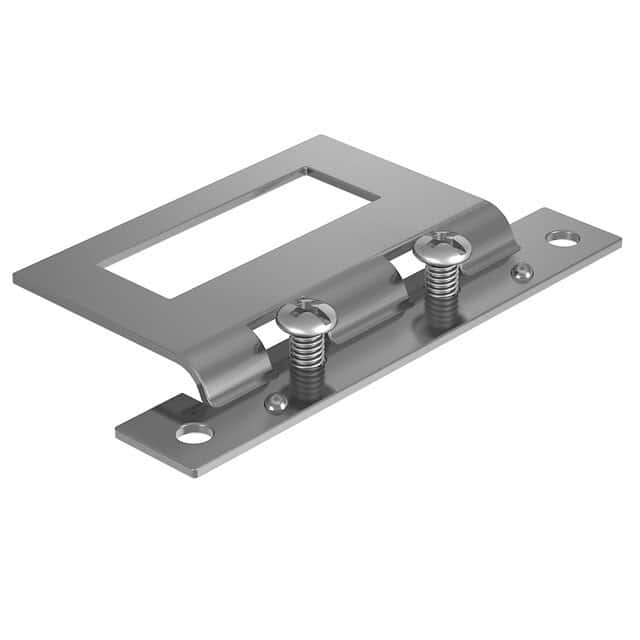

Frame Hanger for Use with Wood or Aluminium

A simple alternative to D-rings for picture rails

This frame hanger is a neat alternative to classic
D-rings (D-ring hangers)
when you are hanging artwork from a picture rail.
Instead of threading a hook through a D-ring, you can hook directly into this hanger – I find it quick, secure, and much less fiddly.

Two versions – timber or aluminium

This page covers two matching products. Choose the version that suits your frame:

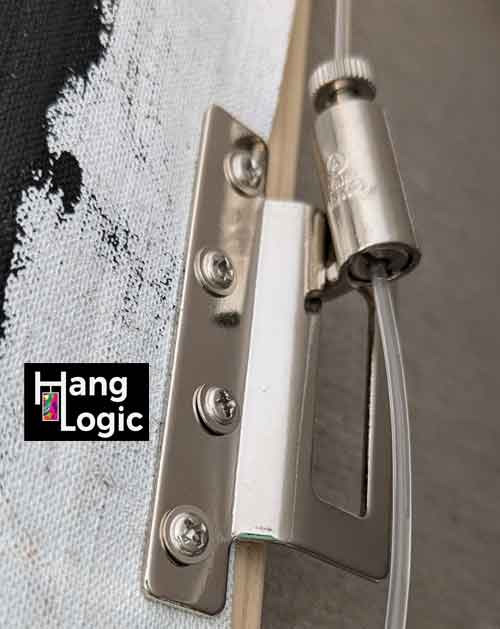

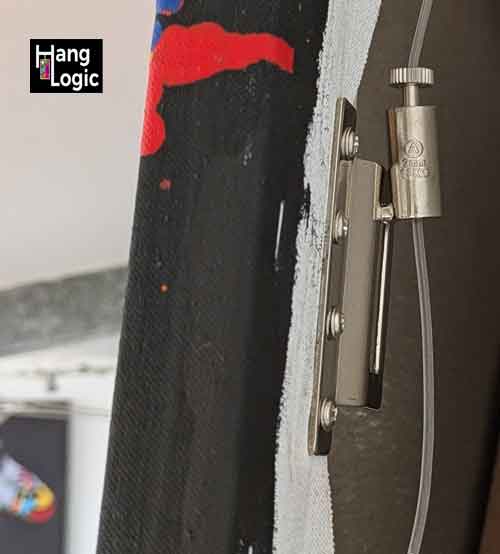

• 808.650 – Frame Hanger for Wood/Timber: screws onto the back of a timber frame or timber stretcher.
• 808.720 – Frame Hanger for Aluminium: clamps onto many aluminium frame profiles by tightening the screws (no drilling into the frame).

How to tell which one you need

• Timber frame: solid timber back or stretcher – use 808.650.
• Aluminium frame: metal frame with a rear channel/lip – use 808.720.

Why this hanger is so useful

• Fast hanging: hook straight into the hanger.
• Stable: strong, steady design for a secure, wiggle-free connection.
• Easier levelling: ideal when using two hangers and two wires.

Installation overview

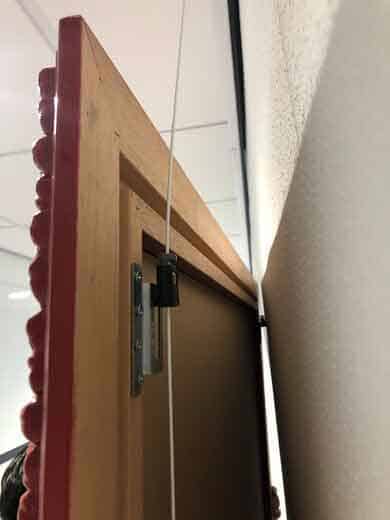

808.650 – timber frames

1. Position the hangers near the top of the frame (usually left and right for wider frames).
2. Fix them to the timber using suitable timber screws.
3. Hang from your picture rail using your chosen wire and hook.

808.720 – aluminium frames

1. Position the hanger on the aluminium frame profile (typically near the top left and top right).
2. Tighten the screws so the hanger grips the frame firmly.
3. Hang from your picture rail using your chosen wire and hook.

How many hangers should I use?

• Two : one left + one right (best stability and easiest to level).

Hanging performance – light to heavy artworks

This hanger works beautifully for everyday picture hanging. For heavier pieces, pair it with stronger hanging gear.
A popular heavy-duty combo is the
Twister 2 mm steel cable
and the
Micro Grip 2 mm 20 kg hook
for maximum stability and strength.

FAQ

Will the aluminium version (808.720) work with a 1 mm hanging wire and a 1 mm Micro Grip hook?

Yes – in most cases. If your aluminium frame has a suitable rear channel/lip where the hanger can clamp securely,
808.720 creates a solid hanging point for a 1 mm hanging wire with a 1 mm Micro Grip hook.

Prices

• 808.650 – Frame Hanger for Use with Wood/Timber – $2.56
• 808.720 – Frame Hanger for Use with Aluminium – $4.65
